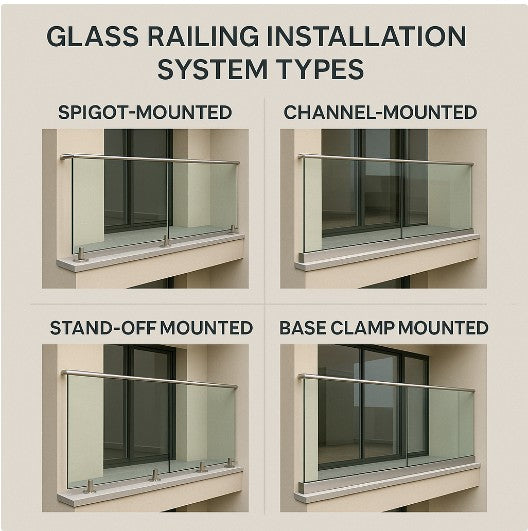

Glass railing systems are categorized by their mounting method and structural design, each offering distinct aesthetic and functional benefits.

• Frameless glass railings – Glass panels are secured directly to the floor or structure using base channels or clamps, creating an unobstructed view with minimal hardware visibility

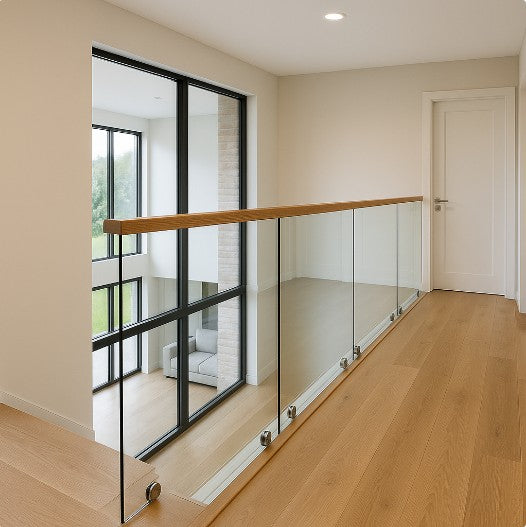

• Standoff (spigot) systems – Glass is mounted using metal standoffs that elevate panels slightly from the mounting surface, providing a modern floating appearance while maintaining structural integrity
• Clamp-fixed railings – Individual clamps secure glass panels to posts or handrails, allowing for flexible installation on various surfaces and easy panel replacement

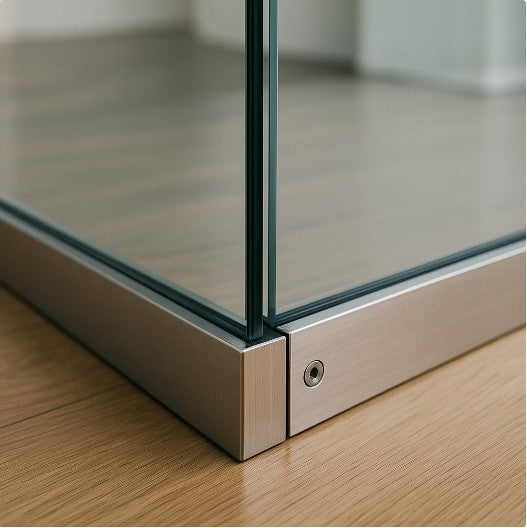

• Channel-mounted systems – Glass sits within aluminum or stainless steel channels (top, bottom, or both), offering maximum stability for high-traffic commercial applications
• Post-and-rail systems – Glass panels are held between vertical posts with top and bottom rails, combining traditional railing aesthetics with modern glass transparency

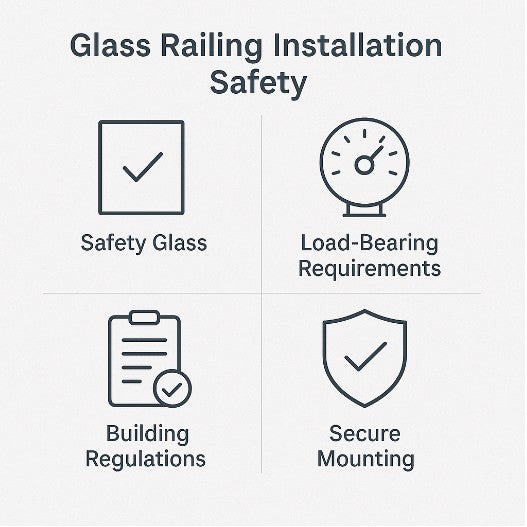

Glass railings are engineered to meet or exceed stringent safety standards when properly specified and installed, making them one of the safest railing options available.

All structural glass railings must use 10–15mm toughened (tempered) safety glass that has undergone heat treatment to increase strength by 4-5 times compared to standard glass. This glass type is designed to shatter into small, relatively harmless granules rather than dangerous shards if broken.

Key compliance requirements include:

• Load-bearing certifications – Glass must withstand horizontal loads of 0.74 kN/m (50 kg/m) for residential and up to 3.0 kN/m for commercial applications per BS 6180 and EN 12600 standards
• Height regulations – Minimum railing height of 1100mm for residential balconies and 1100-1200mm for commercial spaces, depending on fall risk
• Impact resistance – Glass must pass pendulum impact tests (Class 1B1 or higher) to ensure it can withstand accidental collisions
• Edge treatment – All exposed edges must be polished or protected to prevent injury
• Laminated options – For overhead applications or high-risk areas, laminated safety glass (two layers bonded with PVB interlayer) provides additional security by holding fragments together if broken

Professional installation by certified contractors ensures all mounting hardware, base fixings, and structural connections meet local building codes. Learn more about our commercial installation services.

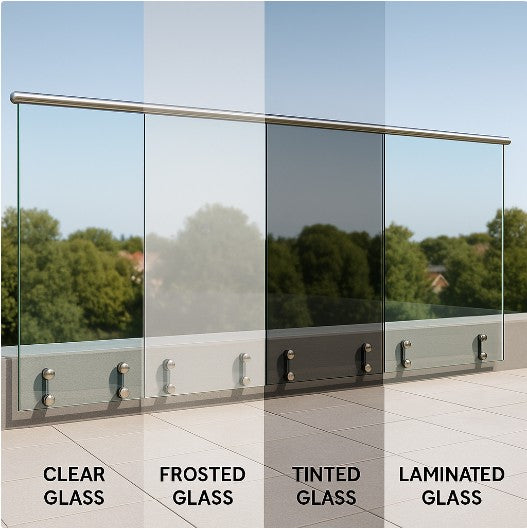

Glass selection depends on environmental exposure, aesthetic preferences, and functional requirements specific to each installation location.

• Clear tempered glass (10-15mm) – Ideal for interior applications and covered outdoor areas where maximum transparency and light transmission are priorities. Provides unobstructed views while meeting safety standards
• Low-iron (ultra-clear) glass – Eliminates the greenish tint of standard glass, offering true color clarity. Recommended for high-end residential projects, poolside installations, and architectural applications where visual purity is essential
• Tinted glass (grey, bronze, green) – Reduces solar heat gain by 30-50% and minimizes glare, making it suitable for south-facing balconies, rooftop terraces, and hot climates. Also provides subtle privacy while maintaining views
• Frosted or acid-etched glass – Offers privacy without sacrificing natural light, perfect for ground-floor balconies, bathroom areas, or urban settings with close neighboring properties
• Laminated safety glass – Two glass layers bonded with PVB interlayer provide enhanced security, sound dampening (reducing noise by 30-40dB), and UV protection (blocking 99% of harmful rays). Essential for coastal areas, high-wind zones, and overhead applications
• Self-cleaning coated glass – Hydrophobic nano-coating breaks down organic dirt and allows rain to wash away residue, reducing maintenance by up to 50%. Ideal for hard-to-reach installations and coastal environments with salt spray

Environment-specific recommendations:

• Coastal/marine environments – Use laminated glass with stainless steel 316 marine-grade hardware to resist salt corrosion
• High-wind areas – Specify thicker glass (15-19mm) with reinforced base channels and increased fixing points
• Pool surrounds – Low-iron glass with anti-slip base channels and drainage considerations
• Commercial high-traffic – Laminated glass with protective film and robust channel systems

Our team provides site-specific glass recommendations based on your location, exposure, and usage requirements. Explore our glass balcony panel options.

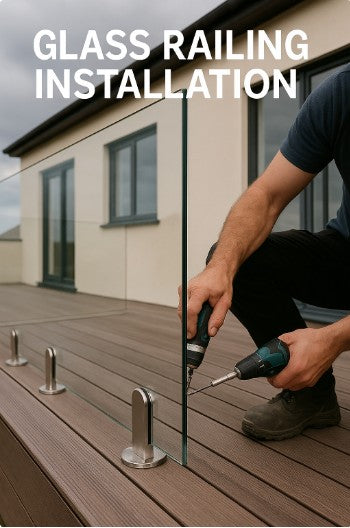

Glass railing installation methods vary based on mounting surface, structural requirements, and architectural design, with each approach engineered for specific applications.

Surface-mounted installations (most common):

• Concrete/masonry surfaces – Base channels or standoffs are anchored using expansion bolts or chemical anchors, with load distributed across multiple fixing points. Requires minimum 150mm concrete thickness and structural engineer verification for load-bearing capacity
• Timber decking – Specialized deck-mount brackets attach to reinforced joists or blocking beneath decking boards. Additional structural support may be required to meet load requirements, typically doubling joists at railing locations
• Steel structures – Direct welding or bolt-through connections to steel beams or posts, with base plates custom-fabricated to match existing structural profiles

Fascia-mounted installations:

• Glass panels mount to the side face of a structure (balcony edge, stair stringer) using side-fix brackets or channels
• Ideal for situations where surface mounting is not possible or where preserving floor space is critical
• Requires robust structural substrate (minimum 200mm concrete or reinforced timber) to handle lateral loads

Core-drilled installations:

• Standoffs or posts are set into core-drilled holes (typically 50-100mm diameter, 150-200mm deep) and secured with structural epoxy resin
• Provides clean aesthetic with minimal visible hardware and excellent load distribution
• Commonly used for concrete balconies, stone terraces, and commercial plaza applications

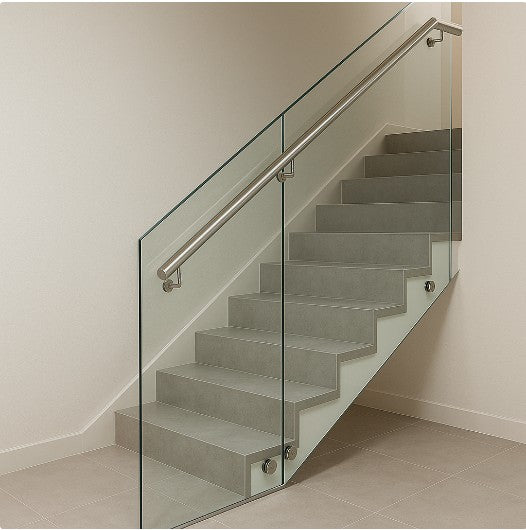

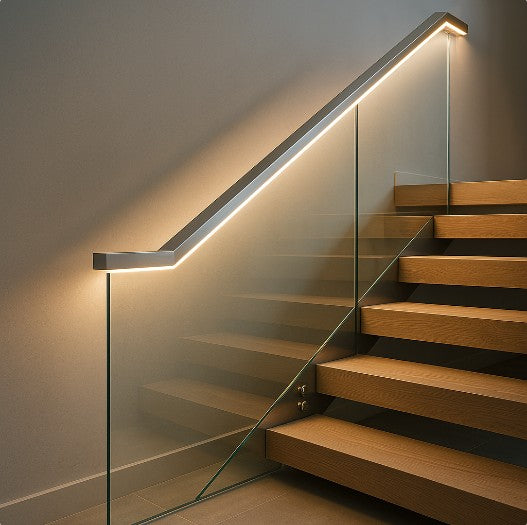

Staircase-specific installations:

• Angled base channels or adjustable standoffs accommodate stair pitch (typically 30-45 degrees)
• Glass panels are cut to follow stair profile with precise measurements for each tread
• Handrail integration options include top-mounted rails or offset wall-mounted handrails to meet code requirements

Installation process timeline:

• Site survey and measurements: 1-2 hours
• Glass fabrication: 2-3 weeks
• Installation (typical residential balcony): 1-2 days
• Installation (commercial project): 3-5 days per floor

All installations include structural assessment, building regulation compliance verification, and post-installation load testing. View our professional installation services.

Glass railings require minimal maintenance compared to traditional materials, with routine cleaning being the primary upkeep task to maintain clarity and appearance.

Regular cleaning schedule:

• Interior installations – Clean every 2-4 weeks using glass cleaner or mild soap solution with microfiber cloth
• Exterior residential – Clean monthly or after heavy rain, pollen season, or dust storms
• Coastal/marine environments – Clean bi-weekly to remove salt deposits and prevent mineral buildup
• Commercial high-traffic – Clean weekly or as needed to maintain professional appearance

Cleaning best practices:

• Use pH-neutral glass cleaner or mixture of water with 5% white vinegar
• Avoid abrasive materials, scouring pads, or harsh chemicals that can scratch glass or damage coatings
• Clean from top to bottom to prevent streaking
• Dry with squeegee or lint-free cloth for streak-free finish
• For stubborn water spots or mineral deposits, use specialized glass restoration compound

Hardware maintenance:

• Stainless steel components – Wipe down quarterly with stainless steel cleaner to maintain luster and prevent surface oxidation
• Aluminum channels – Check drainage holes annually to ensure water doesn't accumulate; clear debris as needed
• Rubber gaskets/seals – Inspect annually for cracking or deterioration; replace every 5-7 years or as needed
• Fixing bolts – Check tightness annually; re-torque to manufacturer specifications if loosening detected

Protective treatments:

• Hydrophobic coating application – Apply every 2-3 years to reduce water spotting and make cleaning easier (reduces cleaning time by 40-50%)
• Anti-corrosion treatment – For coastal installations, apply protective wax to metal components every 6 months

Professional maintenance services:

• Annual safety inspection to check structural integrity, fixing security, and glass condition
• Deep cleaning service for hard-to-reach installations or heavily soiled glass
• Re-coating services for protective treatments
• Hardware replacement and adjustment as needed

With proper maintenance, glass railings maintain their clarity and structural integrity for 20-30 years, significantly outlasting wood railings (10-15 years) and requiring less upkeep than painted metal systems.
